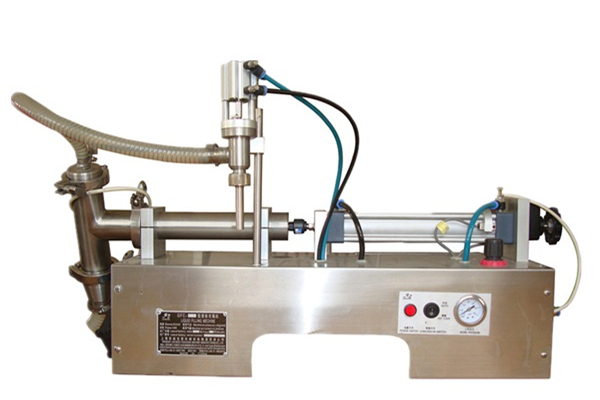

GFC filling machine is our company developed pneumatic semi-automatic piston filling machine for low viscosity liquid. The filling machine is suitable for petrochemical, pharmaceutical, cosmetic, food, pesticide industry and so on, the ideal equipment for filling fluid.
Feature
The filling machine has the advantages of reasonable structure, small size, reliable performance, convenient operation, and full pneumatic explosion-proof machine. Machine contact part is 304/316 stainless steel, piston cylinder wall thickness 5mm, the inner wall honing, equipment has good stability, filling accuracy is extremely high (1L/2L filling error is 2-5 grams), long service life and other advantages. Avoid the disadvantages of sanitary tube production with the same industry.
GFC filling machine is the company developed the whole pneumatic filling machine for low viscosity fluids, which is driven through the cylinder piston and rotary valve to extract and inject low viscosity material, and the magnetic reed switch control cylinder trip, you can adjust the filling volume.
|
Parameter |
Item |
Parameter |
|
Air Pressure |
0.4mpa |
|
|
Filling Speed |
0-15瓶/分鐘 |
|
|
Filling accuracy |
±0.5% |
|
|
Configuration |
Pneumatic part |
Airtac |
|
Contact Part |
SS304 or SS316 |
|
灌 裝 效 果 |
Model |
Filling Volume（ml） |
Ideal FIlling Volume（ml） |
|
GFC-7 |
7～70 |
10～70 |
|
|
GFC-12 |
10～120 |
50～120 |
|
|
GFC-25 |
25～250 |
100～250 |
|
|
GFC-50 |
50～500 |
200～500 |
|
|
|
GFC-100 |
100～1000 |
300～1000 |
|
GFC-250 |
250～2500 |
500～2500 |
|
|
GFC-500 |
500～5000 |
1000～5000 |
