1, Keli sensor, long life service and stability, ;
2 , computer automatic weighing and high
precision;
3, double speed filling (at the
beginning of fast filling,automatic slow filling when close to the target ) to
ensure the filling accuracy;
4, vacuum suck system to ensure no
leakage;
5, press button at anytime, easy to
clean pipes and emergency stop;
6, special treatment can be filled with
high temperature liquid, corrosion liquid, high viscosity liquid.
7. The main frame is 304 stainless
steel, and the material contact part is 304 stainless steel material

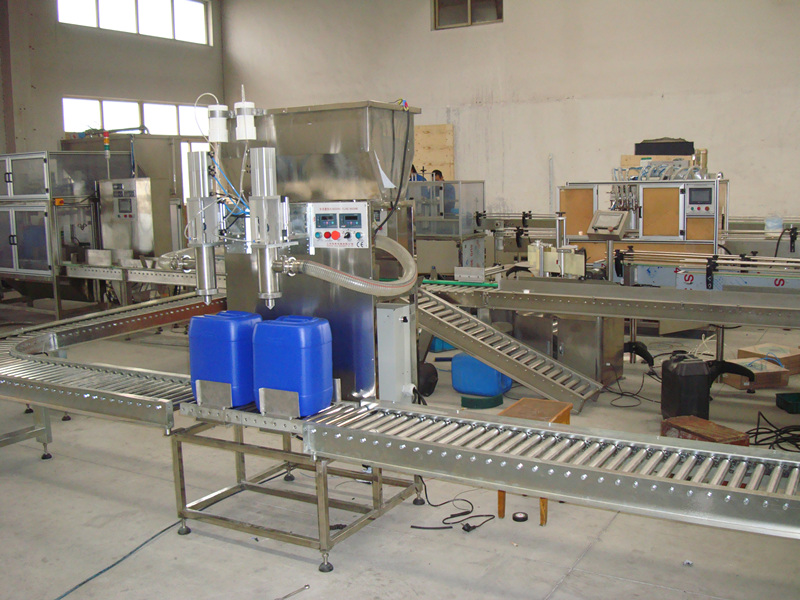

Filling principle
The machine operate by button,PLC controlled. Weighing sensor, liquid level sensor, limit sensor, through the module transfer to PLC. The button give signal to start work, the PLC controls the filling weight by weighing and measuring. The output signal controls the working procedure and completes the automatic filling.
1.1 voltage： 220V/50Hz
1.2 power： 1KW
1.3 air pressure： ≥0.5Mpa
1.4 air consumption: ≤0.15M3/Min
1.5 filling volume: 10KG—30KG
1.6 filling precision： ±0.2%
1.7 filling speed : 120—240Bucket/H
1.8 bucket : 20～30liter small mouth standard bucket
